Nanojet Piezovalve

The piezo valves in our product portfolio are designed for media with viscosities up to 2,000,000 mPas and can be found in all industries such as microelectronics, medical technology or the semiconductor industry.
Common to all valves is the non-contact dispensing in highest and reliable precision.


A user-defined valve configuration based on a selection of nozzles and fluidics can generate the desired droplet size
for the respective dispensing medium and thus perfect the dispensing result.

The Nanojet Piezovalves can be either integrated into our Autodrop Positioning System or a single valve with electronic.

Nanojet Piezovalve NJ-K-4...

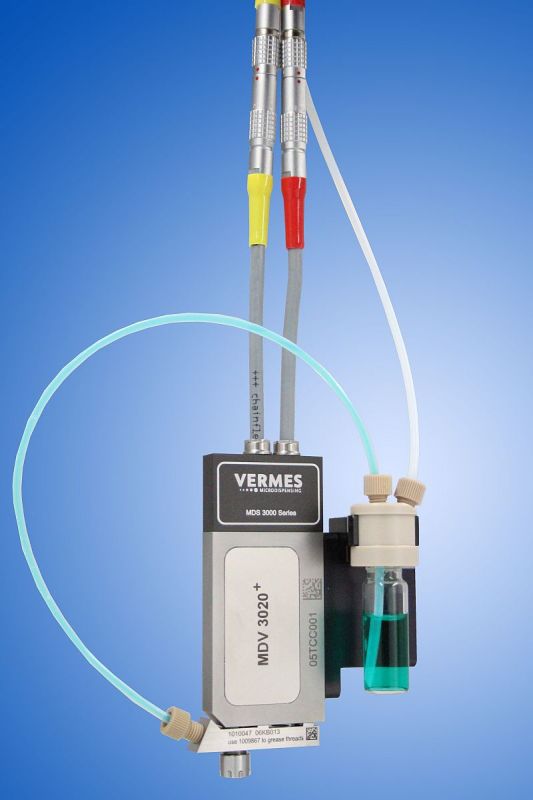

MDV 3010+/ MDV 3020+

Piezovalve for low- to medium viscosity fluids
Dynamic Viscosity of Fluids low to medium viscosity up to 8,000 mPas
Compatibility all aqueous fluids,
organic solvents, weak acids and bases
Dispensable Quantity Minimum 5 nl per cycle
Operating Temperature from 10 °C to 50 °C

MDV 3280

Piezovalve for low- to highest viscosity fluids
Dynamic Viscosity of Fluids low to high viscosity up to 2,000,000 mPas
Compatibility all aqueous fluids,
organic solvents, weak acids and bases
Dispensable Quantity 0.5 nl up to >200 µl per cycle
Operating Temperature from 10 °C to 50 °C

Advantages at a glance

  • Choice of different valves which cover the range from low viscosity liquids to hot melt adhesives
  • All valves can be operated individually or integrated into our xyz systems
  • High accuracy due to precisely controlled piezoelectric trigger pulse
  • Stable and robust system for industrial applications
  • 24-hours non stop application possible
  • Easily exchangeable nozzles for various applications
  • Very good chemical stability for the usage of complex liquids

Perfect for applications like

  • Automation
  • Precision mechanics
  • Micro electronics
  • Mechanical engineering
  • Medical industry
  • Pharmacy

Recommended Media, for example:

  • aqueous solution
  • organic solvent
  • adhesive, conductive adhesive
  • hot melt adhesive
  • oil
  • lacquers
  • LED phosphor
